Item # 1188D103025-1

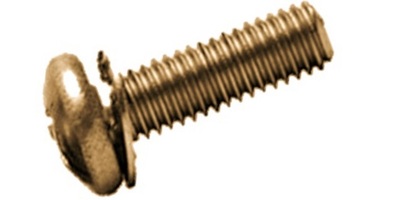

M 3-0.5 x 25 Philips Pan SEMS Screw, Steel Zinc Yellow JIS B 1188 D
- UM: C
- Weight: 0.0030
- Brand: JIS JAPANESE SCREWS
- JIS B 1188 D Internal Tooth Lock Washer Pre-Assembled screws with one free spinning captive washer.
- Low cost and widely available.
- Increases productivity by eliminating hand assembly of individual components.
- Permanent assembly assures that the washer is not dropped, lost or forgotten.
- Ease of use with hand drivers and in automated production programs.
Specifications
| Diameter | M 3 |
| Thread Pitch | 0.5 |
| Length | 25mm |
| Head Wd. | 5.5mm |
| Head Ht. | 2mm |
| Drive Size | # 2 |
| Washer Dia. | 6.5mm |
| Thread Len. | Full Thread |
×
