Item # 1188A502506

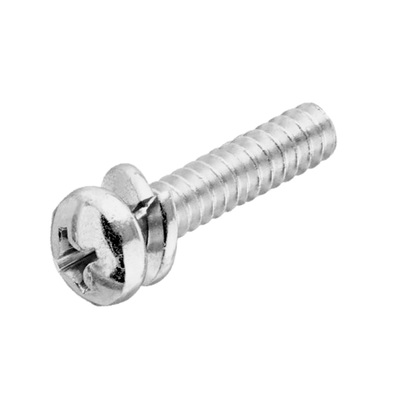

M 2.5-0.45 x 6 Philips Pan SEMS Screw, A2 Stainless Steel. JIS B 1188 A
- UM: C
- Weight: 0.0009
- Brand: JIS JAPANESE SCREWS
- JIS B 1188 A Split Lock Washer Pre-Assembled screws with one free spinning captive lock washer.
- Low cost and widely available.
- Increases productivity by eliminating hand assembly of individual components.
- Permanent assembly assures that the washer is not dropped, lost or forgotten.
- Ease of use with hand drivers and in automated production programs.
Specifications
| Diameter | M 2.5 |
| Thread Pitch | 0.45 |
| Length | 6mm |
| Head Wd. | 4.5mm |
| Head Ht. | 1.8mm |
| Drive Size | # 1 |
| Washer Dia. | 4.8mm |
| Thread Len. | Full Thread |
×
