Item # 1114303006

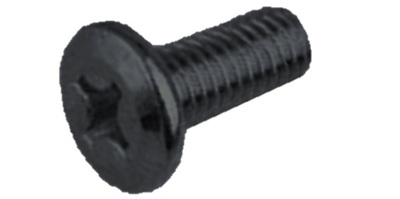

M 3-0.5 x 6 Philips Binding Machine Screw, Steel Black Zinc. JIS B 1111
- UM: C
- Weight: 0.0016
- Brand: JIS JAPANESE SCREWS
- JIS B 1111 Binder head screws, also called binding head screws have a type of head that is Similar to the pan head but much thicker with a deeper drive. Binder head screws feature a 10% larger bearing surface than pan head screws. Binding Head Machine Screws are used for applications including Construction, Industrial and Commercial.
Specifications
| Diameter | M 3 |
| Thread Pitch | 0.5 |
| Length | 6mm |
| Head Wd. | 6.3mm |
| Head Ht. | 1.9mm |
| Drive Size | # 2 |
| Thread Len. | Full Thread |
×
