Item # 11110N06032

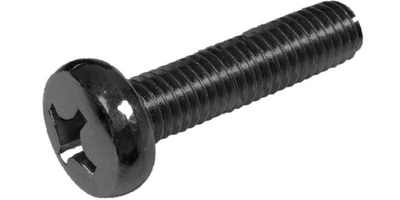

M 6-1.0 x 32 Small Cheese Head Philips Pan Machine Screw, Steel Black Oxide with Patch JIS B 1111
- UM: C
- Brand: PATCH SCREWS
- FULL THREAD JIS B 1111 Small Head Phillips Pan Head Machine Screws, also know as cheese head screws. The small head design is advantageous where head clearance is critical. We also carry JIS Hex Nuts JIS B 1181 and Flange Nuts JIS B 1190
- Spray bonded Self-Locking Anaerobic Patch
Specifications
| Diameter | M 6 |
| Thread Pitch | 1.0 |
| Length | 32mm |
| Head Wd. | 10.5mm |
| Head Ht. | 3.9mm |
| Drive Size | # 3 |
| Thread Len. | Full Thread |
×
