Item # 1073501603

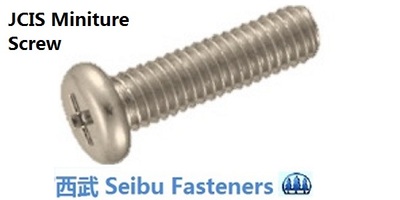

M 1.6-0.35 x 3 Phil Pan Head Machine Screw, Precision Hardened A2 Stainless Steel JCIS 1070 Type 3
- UM: C
- Weight: 0.0001
- Brand: MINITURE SCREWS
- JCIS 10-70 Japanese Camera Industry Screws are miniature screws, micro screws and tiny screws used in Cellphones, Computers, Electronics, Laptops, Televisions, Drones and Micro Circuitry
- Precision Hardened
- Type 3
JCISPHBZ10-70M1.6X003.0
Specifications
| Diameter | M 1.6 |
| Thread Pitch | 0.35 |
| Length | 3mm |
| Head Wd. | 2.8mm |
| Head Ht. | .8mm |
| Drive Size | # 0 |
| Thread Len. | Full Thread |
×
